Manufacturing and supplying engineering solutions for over 20 years. YLSK is a long established, privately-owned, engineering company serving a variety of market sectors in China and Overseas.
Over the past 20 years, we have accumulated abundant experience in forming different kinds of material, no matter soft wire, hard wire, round wire, flat wire, special-shaped wire, strip, tube, compound material and pre-processed material, we all have a proper solution, and the application covers various kinds of fields.
<p>The production of CNC spring machines can be achieved through computer programming, which can produce various shapes and specifications of spring and meet various needs.</p>
With experienced design engineering team, customized requirements are open for discussion. We are responsible for spring machine design, development, parts fabrication, assembly, sales, and aftersales service etc.
Related Products
More items about cnc coiling spring machine

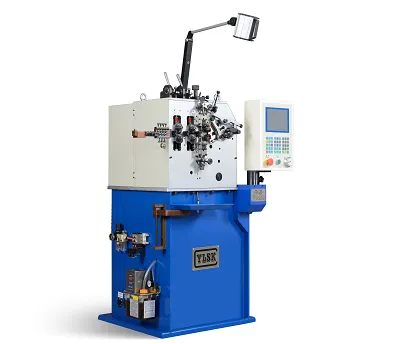

YLSK-560 Spring Coiling Machine
Guangdong Yonglian CNC Equipment Technology Co., LTD. (YLSK) is a leading industry specialized in Design & Manufacturing of CNC Spring machinery and their accessories, Located in Dongguan City, Guangdong Province, China. We have almost 20 years manufacturing experience & supplies wide range of Spring Machines & relevant products to all over the world. Our existing machine categories are Compression Spring machines, forming machines, Cam-less Spring Machine & Wire Bending Machines, Moreover we produce Spring quality testing machines as well as Heating Furnaces. Our equipment is widely used in products such as compression spring, tension spring, torsion spring, wire forming & wire bending products also special purpose springs, Which can meet the production requirements of Automobile, Electronic, Toy, Sports equipment, Household appliance, and so on. YLSK have a young and energetic team, and providing uninterrupted service to customers in 24 hours. Looking forward to the future, YLSK wishes rapid development with constant commitment, high quality and stable products, quick and considerate service to realize win-win situation with customers, we are striving to build the first brand in the spring industry.
Customized Cnc Coiling Spring Machine
There are many types of springs, such as compression springs, tension springs, torsion springs, etc. Here we only introduce the working principle of the most widely used spring coiling machine.
A pair or several pairs of rollers are used to press and rotate the steel wire, push the steel wire to move to the right, and rely on the limiting and guiding action of the upper and lower ring diameter rods to form the steel wire. The upper and lower coil diameter rods can be moved in their respective chutes, and the size of the spring coil diameter can be controlled by controlling the positions of the upper and lower coil diameter rods. The pitch rod is a movement perpendicular to the paper surface, and its function is to make the coiled steel wire form a thread lift angle. By controlling the position of the pitch rod, the size of the spring pitch can be controlled. When the winding is complete, the wire is cut with a cutter. The core sleeve is used as a support when the cutter cuts the steel wire. Through the combined movement of the wire feed roller, the upper and lower ring diameter rods, the pitch rod and the cutter, circular compression springs of various shapes such as variable ring diameter and variable pitch can be wound. For the mechanical spring coiling machine, because there is only one power, each action lever is completely linked by gears, cams, clutches and other mechanisms, the structure is complex, and the adjustment is time-consuming. Every time a variety is replaced, the shape of the cam often needs to be trimmed, which requires a high technical level of the operator. In particular, the adjustment range of the wire feed length depends on the size of a sector gear, which limits the extension of the spring. When the sector gear goes back, it is necessary to use the clutch to disengage the wire feeding roller, which not only increases the noise, but also reduces the wire feeding accuracy.
In order to be suitable for computer control, we have completely reformed the mechanical structure of the coiling machine. First of all, each moving mechanism is independent, and each is controlled by a servo motor. For example, the wire feeding mechanism is only a simple gear transmission, and the wire feeding length can be unlimited. ;The upper and lower ring diameter rods and pitch rods are directly driven by the motor connected to the ball screw; the cutting mechanism is only a simple cam drive, in addition to the general cutting method, it can also match the upper and lower cutters for twist cutting, In order to solve the spring shearing of large wire diameter and small winding ratio.
Working principle of cnc coiling spring machine
One or several pairs of rollers are used to press and rotate the steel wire to push the steel wire forward, and rely on the limiting and guiding action of the upper and lower ring diameter rods to form the steel wire. The steel wire continuously moves forward in the respective chutes of the upper and lower coil diameter rods, and the size of the spring coil diameter can be controlled by controlling the positions of the upper and lower coil diameter rods. The pitch rod is a movement perpendicular to the paper surface, and its function is to make the coiled steel wire form a thread lift angle; by controlling and adjusting the position of the pitch rod, the size of the spring pitch can be controlled. When the winding is completed, the wire is cut with a cutter.
Categories of CNC Spring Coiling machines
Computer compression spring machine product series: mainly for circular, arc and straight spring products, such as various precision machining compression springs, tower springs, conical springs, skeleton seal springs and mold springs, etc., the forming rate is faster , high accuracy and high reliability.
All-round CNC spring machine product series: mainly for wire forming products of circles, arcs, straight lines and blank holders, such as various precision machining compression springs, tension springs, torsion springs, leaf springs, special-shaped springs and wire forming products .
Product series of CNC spring machine without camshaft turning line: CNC spring machine without camshaft turning line is in the development trend of most of the all-round CNC spring machine. It adopts unusual design without camshaft and arm without turning arm, which reduces the adjustment Difficulty, reduce the time to adjust the machine and equipment, and improve the expected effect of the work, but the higher price and cost make customers discouraged.
User Reviews
What users say about Us
Frequently Asked Question
Do you have any question?
For materials with different line diameters, the force applied by the tools during bending and cutting is different, which puts different strength and toughness requirements for the materials of the tool. For materials with larger diameter and high hardness of processing of 4.0 or 4.0mm, such as oil quenching steel, this requires higher the toughness and strength of the tools of the tool. At the same time, it is necessary to consider the angle of the tip of the knife, the smooth transition of the blade and the blade.
As far as the safety of spring and the service life of the tools, the use of welding tungsten steel can solve this problem well. If it is easy to crack tungsten steel, it is not safe to splash on the workers. For line diameters below 1.0, lines and wire wheels can be used tungsten steel.
The camless spring machine adopts a unique camless rocker and no rocker arm design. The independent servo drives the arms, and the arm can be disassembled, which is gradually accepted and recognized by more and more users. Compared with the traditional spring machine with cams, the product can be easily formed at one time, reducing the difficulty of product debugging and improving production efficiency.
YLSK no cam spring molding machine provides excellent performance and accuracy, and can provide high -speed molding for various wires, including thick or fine diameter, rectangular or soft metal. Our wire molding machine takes into account the rigorous challenges today. The friendly control of the operator allows them to prepare quickly.
1. Measure the wire diameter of your spring wire (understanding the diameter of the spring wire is very important, different line diameters will use different spring machines) 2.
What kind of line diameter is the spring (such as twist springs, crushing spring, butterfly, alien, etc. Different springs will use different spring machines)
3. Spring specifications (such as wire diameter, inner diameter, outer diameter, number of circles, active circles, spacing, feet length, angle, etc.)
4. Based on the estimated daily output and monthly output, the purchased CNC spring machine needs to meet the daily production of the product.
The most important point of the CNC crushing machine type matching is: spring model, wire diameter, outer diameter, inner diameter, number of circles, etc. If a spring has several outer diameters, it is a multi -diameter spring, using a multi -axis spring machine. If it is a straight barrel -shaped spring, the two -axis crusher spring machine is used.
